80642526

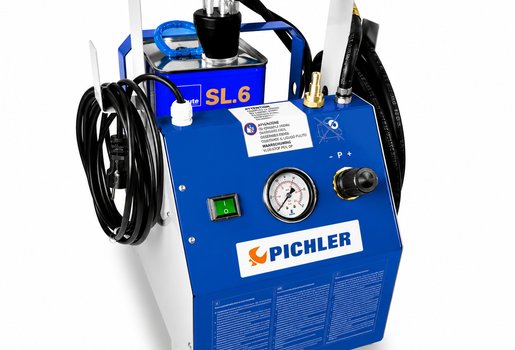

COMPACT PORTABLE AUTOMATIC BRAKE BLEEDER WITH PRESSURE CONTROL 0–3.0 BAR ABS EDS ESP SBC
Compact, lightweight and easy to transport, this portable brake fluid pressure bleeder is an ideal solution for smaller workshops or mobile technicians. Designed for fast and efficient brake bleeding, it provides a constant pulsating fluid flow to help remove trapped air from the braking system, ensuring a reliable and consistent bleed.
Suitable for use on vehicles equipped with ABS, EDS and ESP braking systems, as well as hydraulic clutch systems, the unit can also be used to carry out low pressure brake system leak testing. The 5 litre fluid reservoir and stepless pressure adjustment from 0 to 3.0 bar make it suitable for a wide range of passenger cars and light commercial vehicles.
An automatic low fluid level shut-off protects the system during operation, while the integrated pressure gauge allows the operator to monitor working pressure throughout the bleeding process. Its compact footprint makes it easy to store when not in use, making it an excellent choice where workshop space is limited.
Features
• Compact and portable design
• Ideal for smaller workshops and mobile technicians
• Suitable for ABS, EDS and ESP braking systems
• Suitable for hydraulic clutch systems
• Pulsating fluid flow for effective air removal
• Suitable for low pressure brake system leak testing
• Stepless pressure adjustment from 0 to 3.0 bar
• Automatic low fluid level shut-off
• Integrated pressure gauge
Technical Data
• Fluid container capacity: 5 litres
• Pump capacity: Approx. 40 l/h
• Filling hose length: 3.5 m
• Supply voltage: 230 V, 50–60 Hz
• Power: 120 W
• Fuse: 6.3 A
• Power cable length: 5 m
• Operating temperature: 0°C to +45°C
• Dimensions (H × W × D): 430 × 320 × 340 mm
• Weight: 10 kg
002
Suitable for use on vehicles equipped with ABS, EDS and ESP braking systems, as well as hydraulic clutch systems, the unit can also be used to carry out low pressure brake system leak testing. The 5 litre fluid reservoir and stepless pressure adjustment from 0 to 3.0 bar make it suitable for a wide range of passenger cars and light commercial vehicles.
An automatic low fluid level shut-off protects the system during operation, while the integrated pressure gauge allows the operator to monitor working pressure throughout the bleeding process. Its compact footprint makes it easy to store when not in use, making it an excellent choice where workshop space is limited.
Features
• Compact and portable design
• Ideal for smaller workshops and mobile technicians
• Suitable for ABS, EDS and ESP braking systems
• Suitable for hydraulic clutch systems
• Pulsating fluid flow for effective air removal
• Suitable for low pressure brake system leak testing
• Stepless pressure adjustment from 0 to 3.0 bar
• Automatic low fluid level shut-off
• Integrated pressure gauge
Technical Data
• Fluid container capacity: 5 litres
• Pump capacity: Approx. 40 l/h
• Filling hose length: 3.5 m
• Supply voltage: 230 V, 50–60 Hz
• Power: 120 W
• Fuse: 6.3 A
• Power cable length: 5 m
• Operating temperature: 0°C to +45°C
• Dimensions (H × W × D): 430 × 320 × 340 mm
• Weight: 10 kg
002
Order here now
If you require any further information please call 01335 360759
