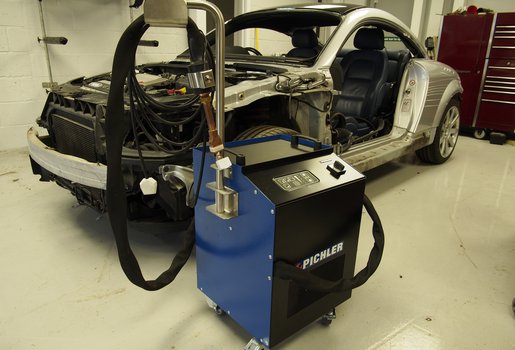

WORKSHOP 300, 3.9KW WATER-COOLED HEAT INDUCTION MACHINE
The WORKSHOP 300 is a compact, liquid-cooled induction heating unit engineered for continuous use in demanding automotive and industrial workshop environments. Built into a stable, wheeled chassis, it eliminates the need for a separate trolley and offers high mobility and ease of use across the workshop.
Output power of 3.9 kW delivered through a 230 V supply and standard 3-pin plug for convenient, plug-and-play operation.
Liquid-cooled design includes 6 litres of coolant circulated through a radiator and fan system to manage thermal loads on the heating head, supplemented by dual cooling fans for the internal circuitry.
3.0 metre heating hose offers extended reach without repositioning the main unit—ideal for work on larger vehicles or when access is restricted.
Replaceable heating magnet tips significantly reduce long-term running costs by avoiding full head replacements in case of wear or damage.
Self-contained unit on four rubber wheels ensures excellent manoeuvrability and workshop stability.
Supplied ready-to-use, pre-filled with coolant and fitted with a standard heating head complete with spare magnet tip.
Optional Accessories (available separately):
Side probe arm for heating head and cable storage – Art. No. 95352019
Large straight heating head – Art. No. 95353025
Small 22 mm straight heating head (ideal for locking wheel nuts) – Art. No. 95353020
Technical Specifications
Output Power: 3.9 kW
Power Supply: 230 V
Mains Frequency: 50 / 60 Hz
Max. Current Consumption: 16 A
Cooling System: Liquid-cooled
Heating Hose Length: 3.0 m
Unit Weight: 39 kg
Article No.: 9535300
