20304000

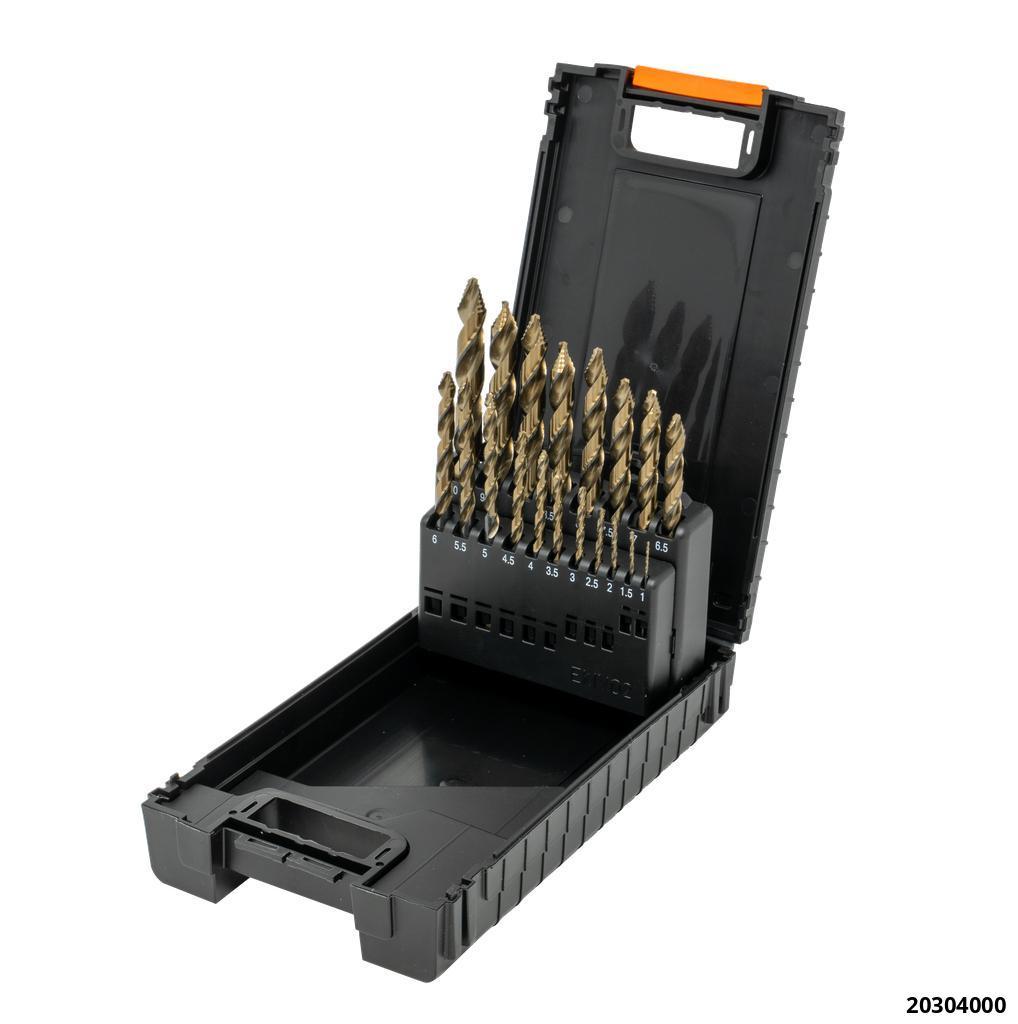

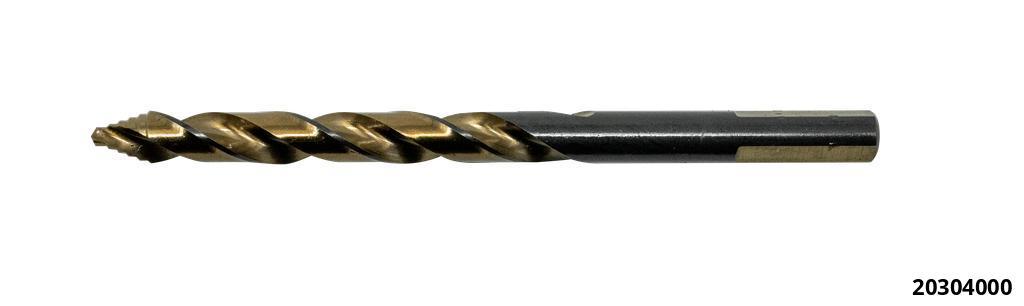

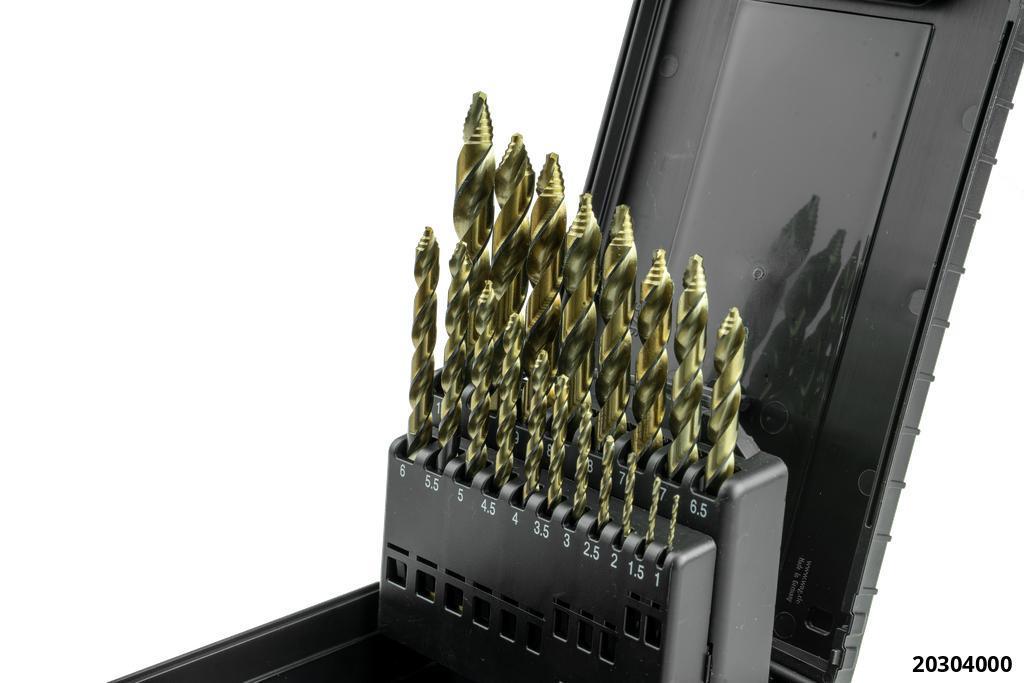

SELF CENTRING TIPPED HSS-CO 5% STEP DRILL BIT SET 1-10 MM

Special drill bit set for clean, round holes even in thin-walled materials. The self-centring step tip removes the need for centre punching, allowing controlled drilling without wandering. It’s especially effective on broken studs, pipes, curved panels and other surfaces where standard drill bits struggle to start cleanly.

Technical Data:
Material: HSS-Co 5%
Tensile strength: 1,200 N/mm²

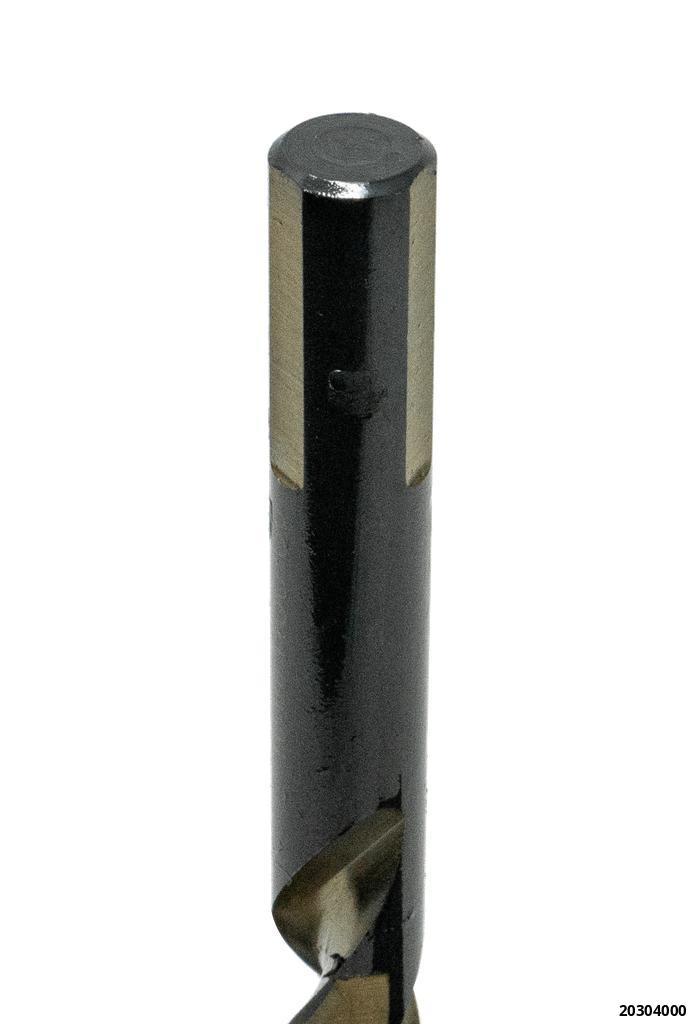

Shank type: cylindrical shank with 3-flat design from Ø 5 mm

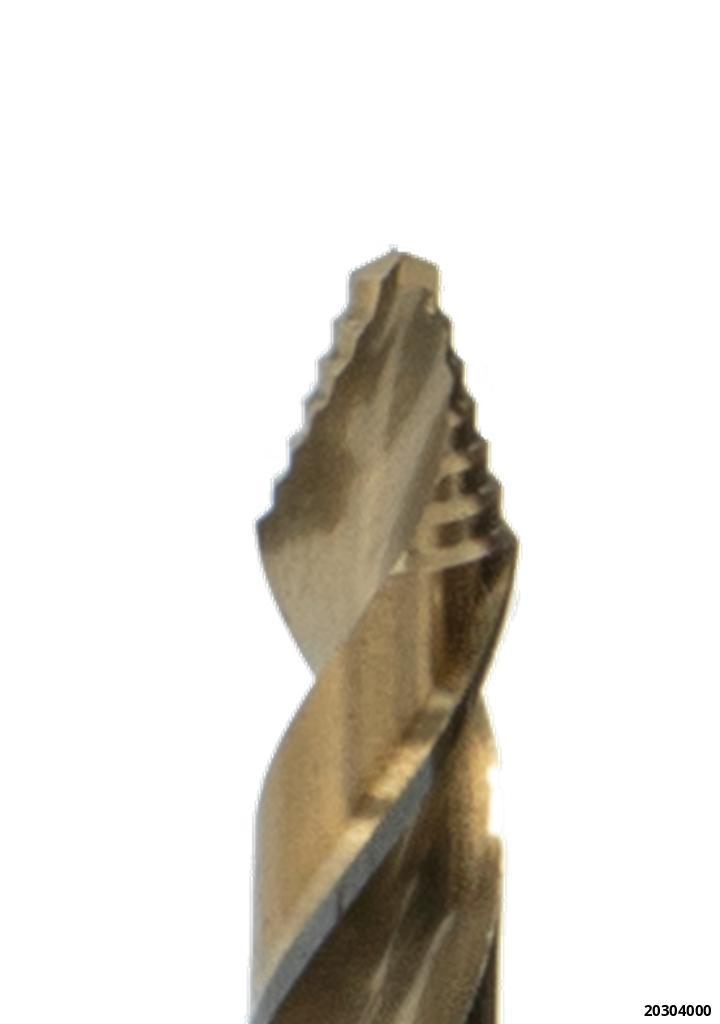

Point grind: conical surface
Point angle: 130°
Web thinning: cross-grind from Ø 3.0 mm
Helix angle: 26–32°
Tolerance: H8
Standards: DIN 338 Type N, DIN 1414
Diameter: 1–10 mm in 0.5 mm steps
002

Order here now
If you require any further information please call 01335 360759
