9038010
INJECTOR SHAFT CLEANING BRUSH SET MODULE 1 (18 PCS)
Universal set for thorough cleaning of the sides and base of the injector shaft prior to injector installation. Ensures the shaft and seat are free from corrosion and debris, allowing the new copper washer and injector to achieve a proper seal.
A sealing plug is inserted into the nozzle hole to protect the combustion chamber from contamination. Using the supplied brush holder and flexible shaft attached to a drill, one of the five steel wire brushes (18–26 mm) is used to clean the shaft walls. The seat face is then cleaned with a dedicated end brush to ensure a flat, corrosion-free surface.
After cleaning, debris is removed using a vacuum or compressed air, and the sealing plug is taken out before final assembly.
Ensures proper injector sealing by cleaning shaft and base
Prevents debris entering the combustion chamber during cleaning
Suitable for use with drills via flexible shaft attachment
Includes brushes sized for a wide range of common injector shafts

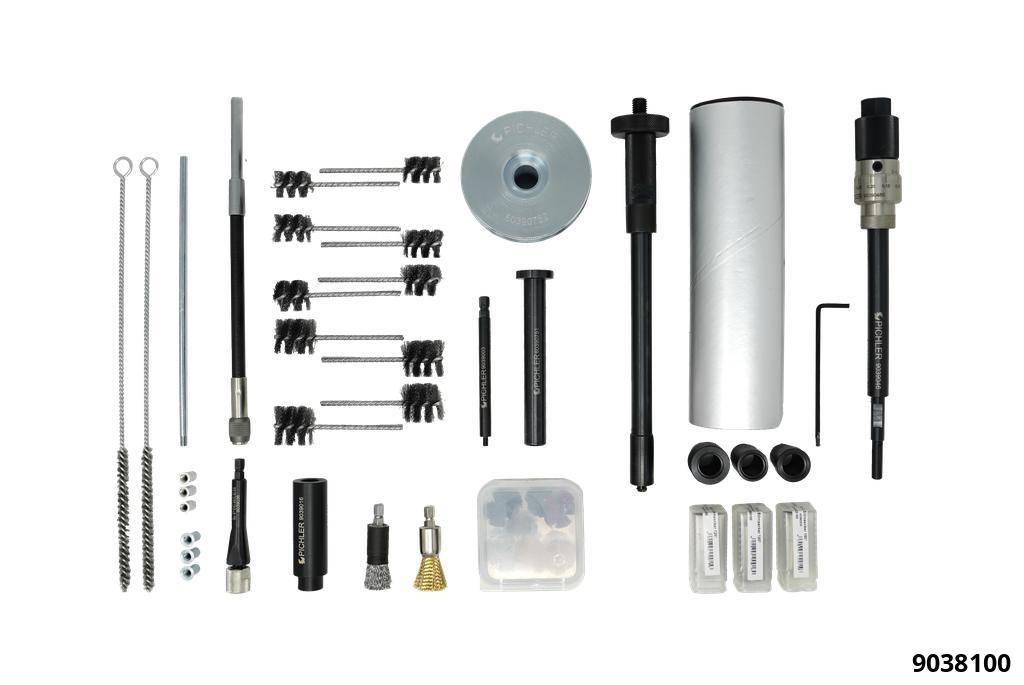

Contents:
5 steel wire brushes (sizes: 18, 19, 21, 24, 25 mm)
Brush holder
Flexible drill shaft
2 end brushes
Plastic guide for end brushes
Setting tool and sealing plugs (8 mm and 10 mm)
Nozzle hole pipe cleaning brush
