90251270
32 TON PUSH PULL HYDRAULIC CYLINDER WITH HAMMERING HEAD
The 32 ton hydraulic cylinder with hammering head is a multi‑role unit designed to work across a wide range of on‑vehicle applications. It can be integrated with various tooling from our equipment range, allowing operations such as king pin replacement, hub pulling, spring eye bush extraction and wheel bearing renewal to be carried out directly on the vehicle with minimal strip‑down. This flexibility means the cylinder can remain in use as additional accessories are added over time.

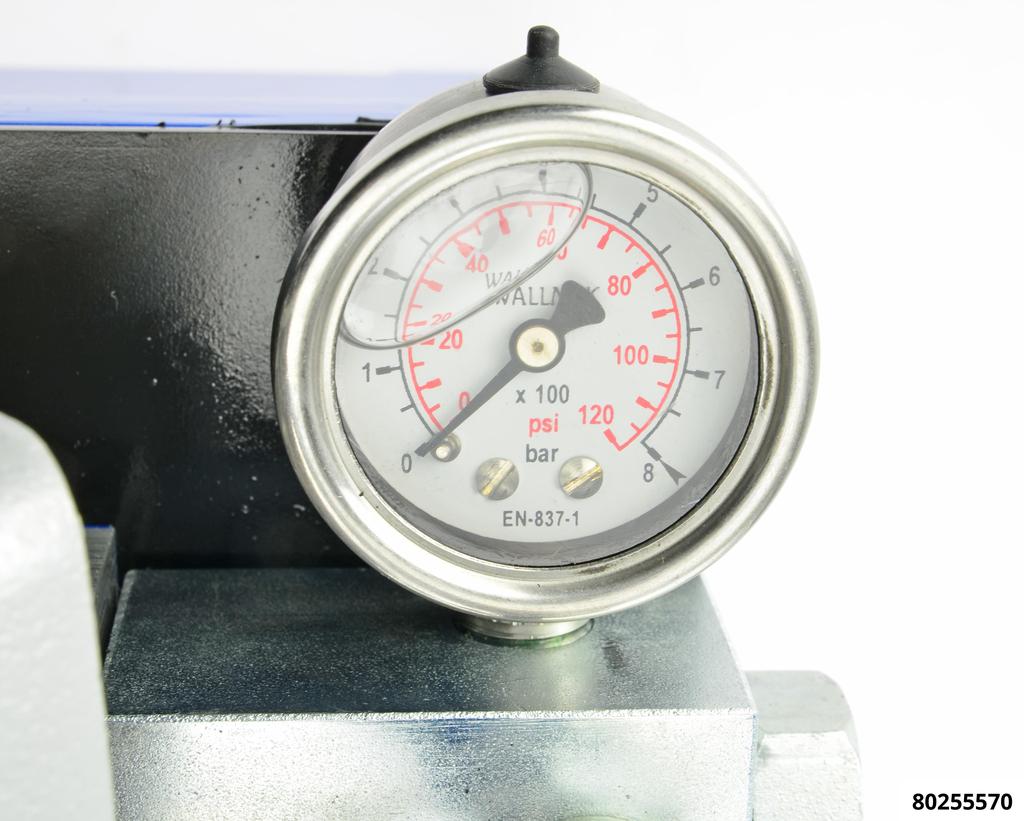

The cylinder can be driven by a manual hydraulic foot pump (part no. 80255560) or by a pneumatic foot pump (part no. 80255570). Where components are severely seized, the cylinder body is designed to accept hammer impact, applying a shock force that assists in releasing the part.
Weight: 8.3 kg
Stroke: 113 mm
Parts included:
Hydraulic cylinder 32 ton
Adjustable press rod 109 mm M24
Thread protection ring (2.5)
Flange nut M22
Carriage beam M22 250 mm
Hydraulic quick coupling male
002
