91694150

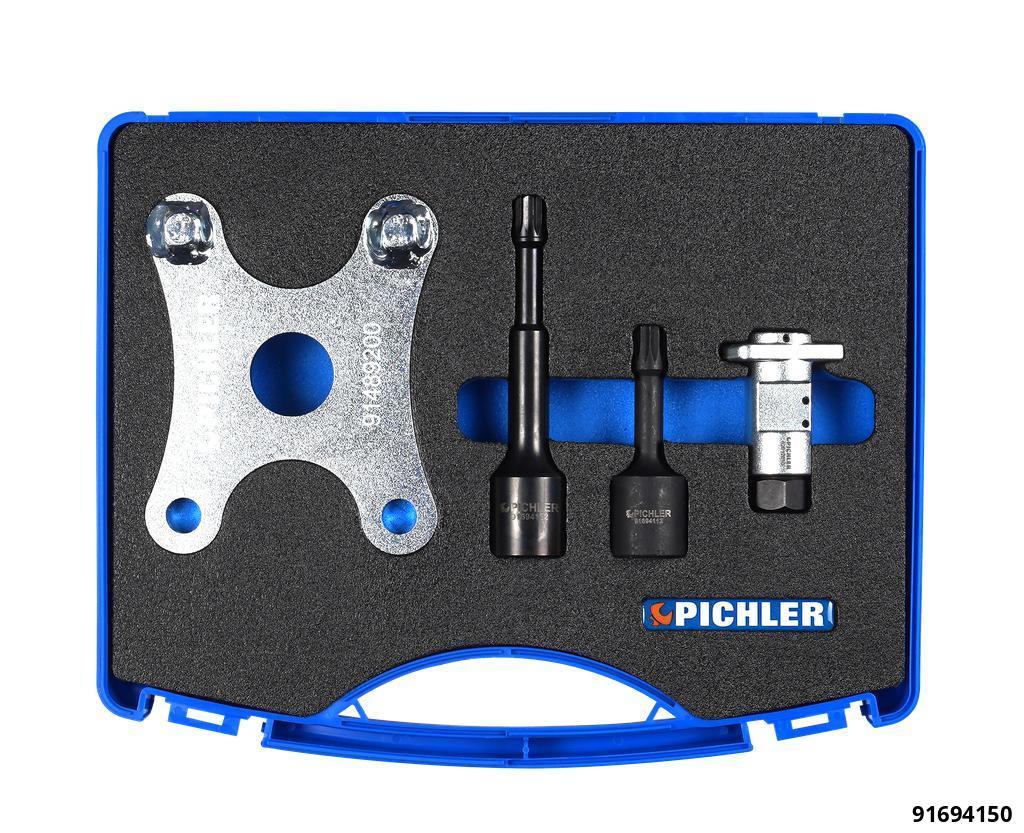

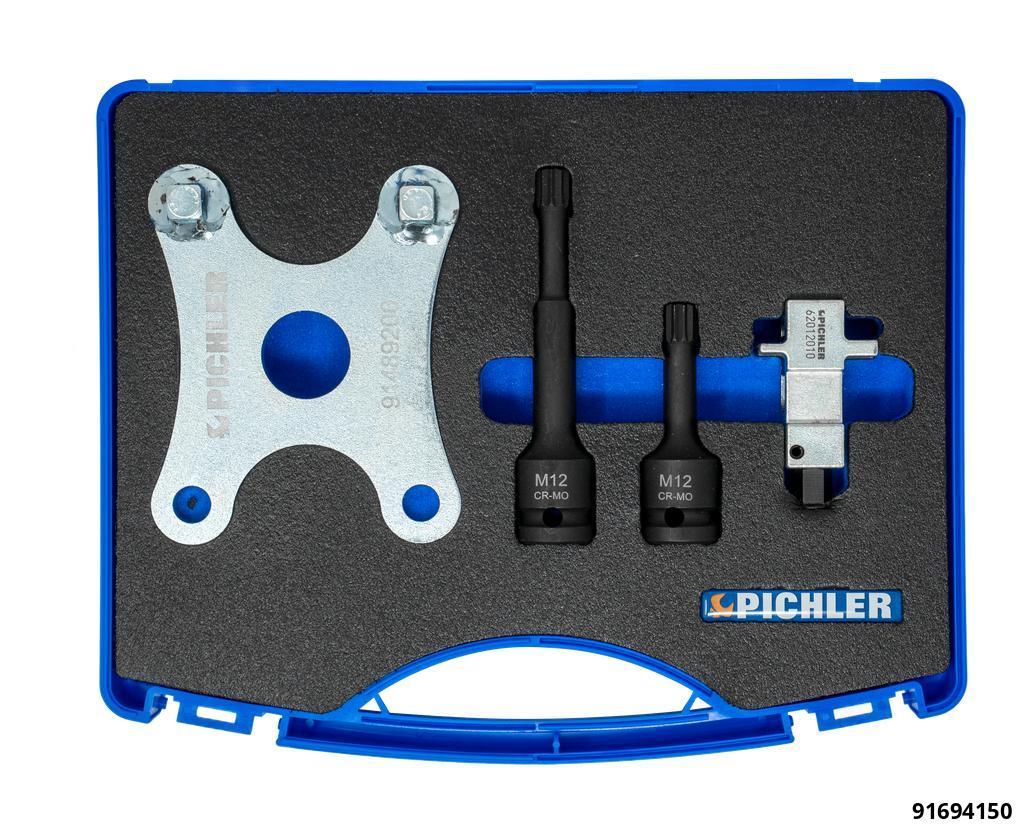

SPECIAL TOOL SET – VAG FRONT AXLE SUSPENSION (4-PIECE)

4-piece set designed to simplify work on front axle suspension components in VAG vehicles.

Ideal for replacement of wheel bearings, drive shafts, struts, and dampers.

Includes:
Spacer for ball joint bolt extension.
– Stabilises the steering knuckle and improves access when removing and fitting wheel bearing bolts.
– Bolt hole spacing: 67 mm.
– Suitable for: Audi A3, VW Golf, Tiguan, Passat, Caddy, Touran, etc.

Short XZN12 socket – VAG vehicles.
– For loosening the wheel bearing bolt in aluminium housings.
– Extra-slim profile enables access with drive shaft in place, without removing the ball joint.

Long XZN12 socket – VAG MacPherson strut vehicles.
– For damage-free loosening of wheel bearing bolts in aluminium housings with installed MacPherson struts.
– Suitable for VW Golf 5, Sharan, Audi A3, and similar.

Universal spreader tool.
– For opening strut clamps (to detach strut from wheel bearing housing) or ball joint sockets.
– Working range: 5.0–11.5 mm.
– Drive: 17 mm | Pulling force: 70 N.
– Material: 42CrMo | Length: 55.5 mm | Width: 30 mm.
