91753700
MOUNTING TOOL FOR SLOTTED BUSHINGS
The mounting tool for slotted bushes is designed for use on trucks and buses and is supplied with a clamp that works in combination with a range of adapters for compressing slotted bushes. A vise is used to easily compress the bush, and a lock pin is then tapped in to secure the clamp during the mounting process. This system uses no fragile bolts or threads, ensuring durability and reliability in workshop conditions. The set accommodates the following bush sizes: 95, 85, 80, 75, 70 and 65 mm.
It is intended to be used together with bush set 91753800, which includes dismantling and mounting plates and pipes in the correct dimensions.
This tool can also be used with Kingpin Frame 61631001 for on‑vehicle bush replacement.
Bush adapter add on set for smaller bushes also available, (part number 91753705)

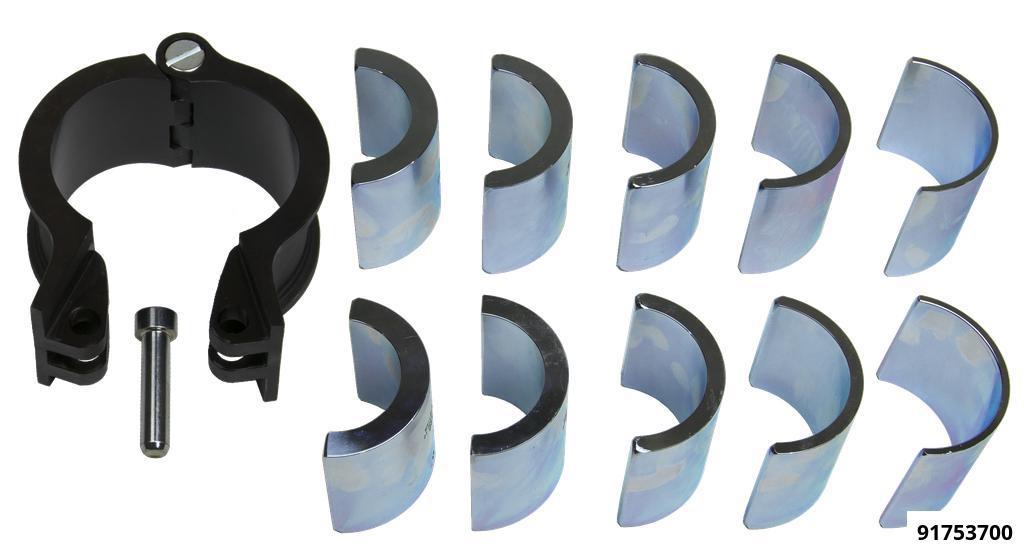

Contains these parts:
03 00037 001 Clamp Ø95 mm
03 00037 065 Adapter set Ø65 mm
03 00037 070 Adapter set Ø70 mm
03 00037 075 Adapter set Ø75 mm
03 00037 080 Adapter set Ø80 mm
03 00037 085 Adapter set Ø85 mm
Also available:

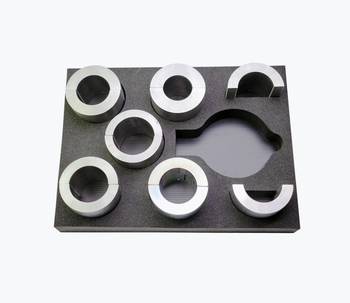

Bush Adapter Set for smaller bushes, part number 917‑53705
