61135910

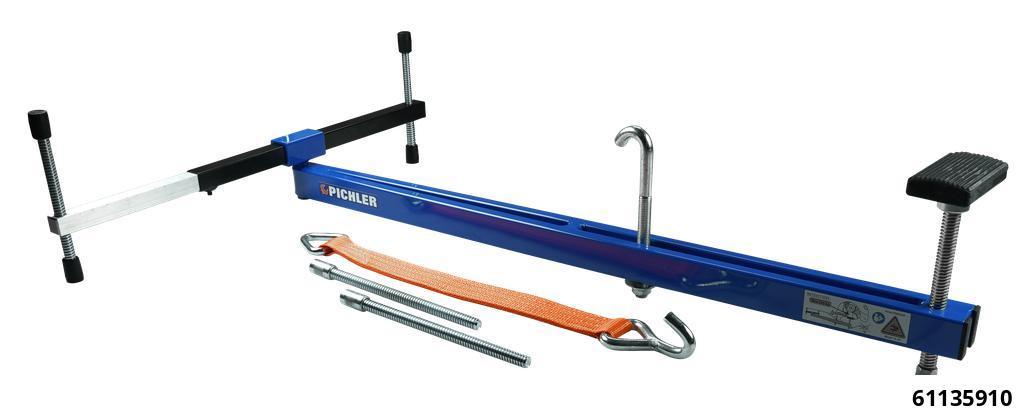

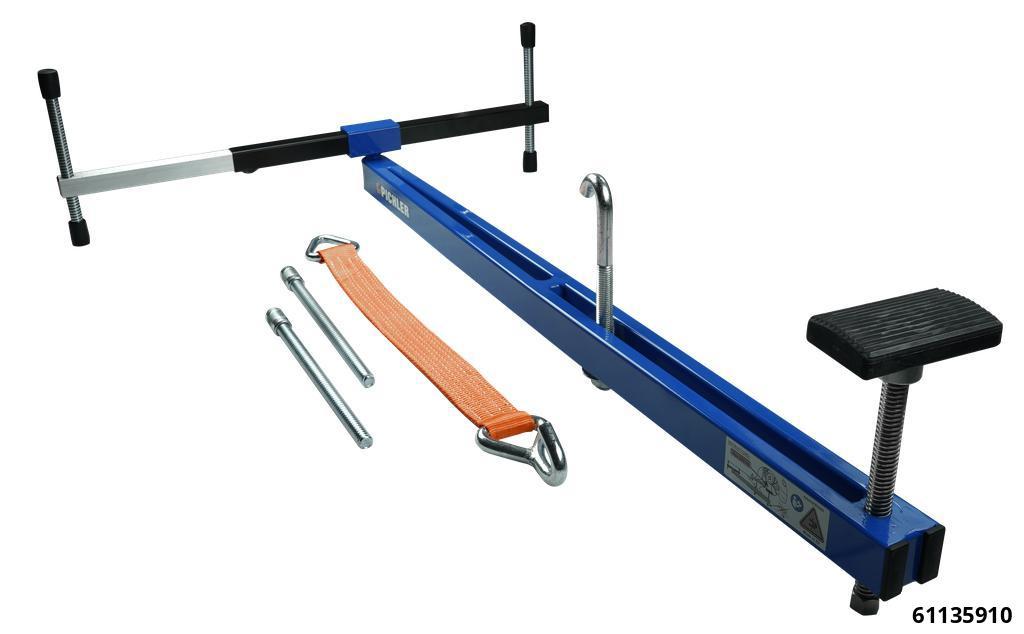

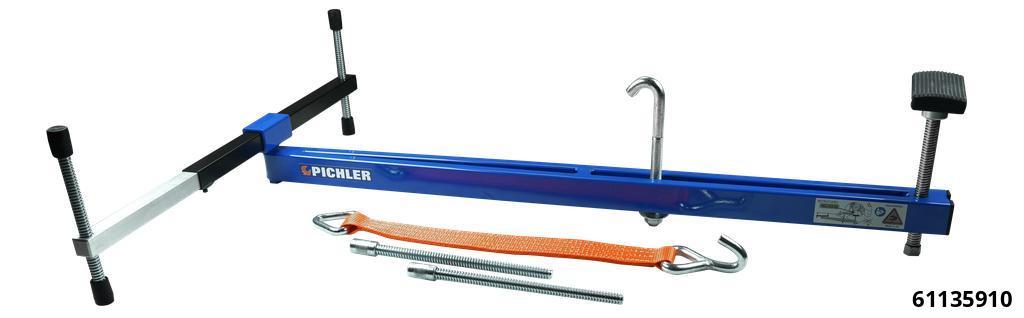

UNIVERSAL UNDER VEHICLE ENGINE & GEARBOX SUPPORT LONG VERSION MANUAL JACK

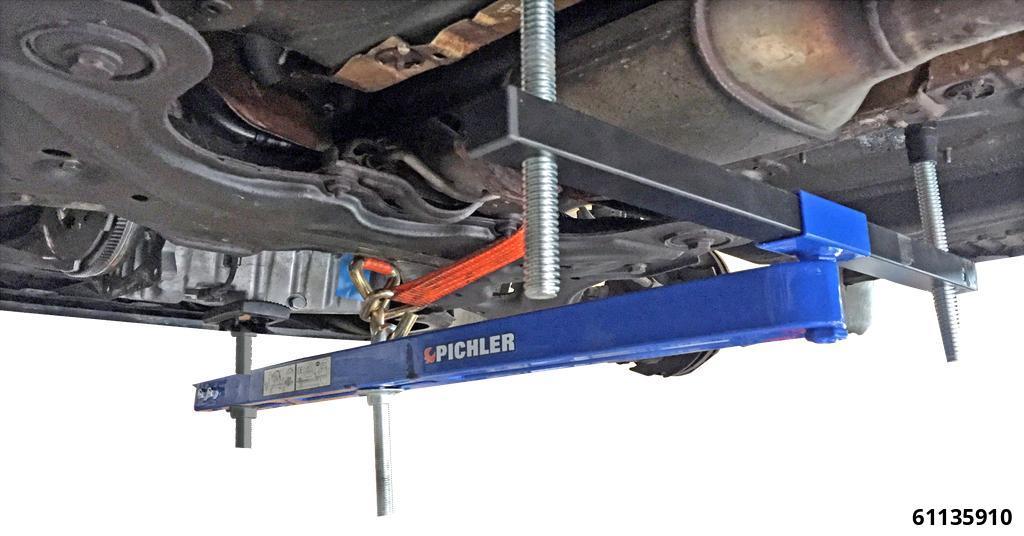

The universal under-vehicle engine and gearbox support (long version) provides stable support from beneath the vehicle when carrying out tasks such as gearbox removal, cam belt replacement or other service work where controlled height adjustment is required. The beam mounts directly to the underside of the vehicle using a secure hook and strap, with a manual winding jack at the front for precise lifting and adjustable rear stabilising legs for both height and width, allowing it to suit a wide range of vehicles. Because the unit works from below, the vehicle can still be raised or lowered on the lift during use, maintaining full access throughout the job. A shorter version with a scissor-jack design is also available (see item 61136500).
Max. load capacity: 250 kg
Length: 1150 mm
Height: 100 mm
Max. lifting height (manual jack): 260 mm
Weight: 10 kg
002

To order this product please call 01335 360759
